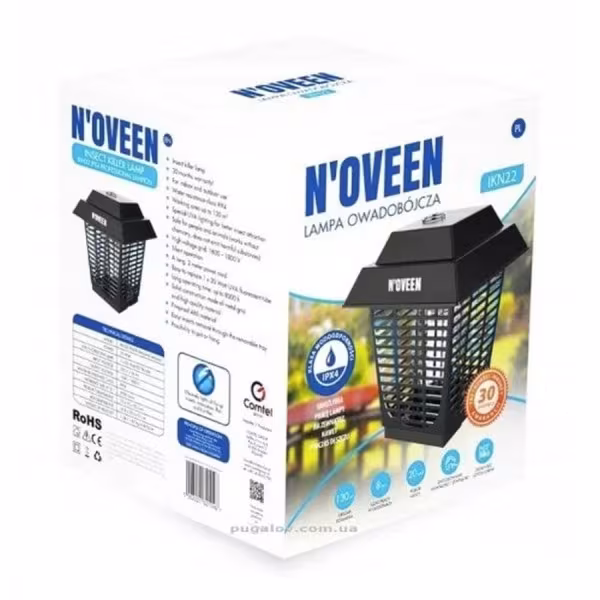

Insect trap NOVEEN 22W, 130 m2

Application: flies, mosquitoes, midges

Protection range up to 130 m2

Power 20 W

Grid voltage 1800 V

Dimensions 255×255×310 mm

Weight 1.34 kg

Power supply 220-240 V 50 Hz

Warranty: 1 year

power supply: 220-240 V 50 Hz

power: 20 W

area: up to 130 m2

number of UVA lamps: 1x20 W E27 BL

grid voltage: 1800 V

cord length: 1.8 meters

protection rating: IPX4

dimensions: 255x255x310 mm

weight: 1.34 kg

NOVEEN IKN-22W IPX4 operating principle: the trap has 1 20 W E27 BL lamp. The insect trap operates from a 220-240 V 50 Hz network. The lamp attracts insects with a special UV lamp spectrum. Insects die after touching the grid under voltage. There is a tray for insects at the bottom of the trap. The tray is removable, you can take it out and clean it.

Additional information: works without the use of chemicals, does not emit harmful substances, is safe for humans, comes with a loop for hanging (can be hung or installed on a surface).

The insecticidal lamp effectively protects premises from flying insects such as: flies, mosquitoes, midges.

The NOVEEN IKN-22W IPX4 device is intended for use: lawns, terraces, summer areas, parks, garden plots.

Thanks to the use of modern technologies with lamps UVA 365 nm, insect control is possible without the use of chemicals.

The design is made of metal and high-quality fire-resistant ABS plastic - provides high stability and safety.

Operating rules NOVEEN IKN-22W IPX4. Before use, read the attached instructions. In order to ensure maximum efficiency, it is recommended to hang the lamp at a height of 1.8-2 m, away from other light sources, insects attracted by light rays with the appropriate wavelength die on the grid under voltage and fall into an inconspicuous collector at the bottom of the lamp.  To clean the collector, it must be unscrewed and carefully pulled out. The mesh is easy to clean with a brush. Before cleaning the mesh or insect container, unplug the lamp from the outlet. In order to ensure maximum efficiency, it is recommended to use bulbs specially designed for light insecticidal traps.

insect trap

removable tray

hanging loop

instructions

High voltage! Do not touch the internal electrical network.

Never place metal objects inside the nets during operation.

Keep away from flammable substances.

Check the voltage at the site before operation.

Use away from children.

Keep the appliance and its cord out of the reach of children.

Children should not play with the trap. Children should be supervised to ensure that they do not play with the appliance.

The appliance should not be used in places where flammable steam or explosive dust is likely to exist.

The appliance can be used as a hanging type or a pedestal. If as a hanging type, use only the attached chain and hang it in the place where the supports are fixed. When as a pedestal, place on a flat surface only.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Unplug the appliance before cleaning. Clean the plastic housing/grill with a dry cloth, empty the collection tray weekly or as needed.

Keep the appliance and its cord out of the reach of children under 8 years of age.

Important precautions: "This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
