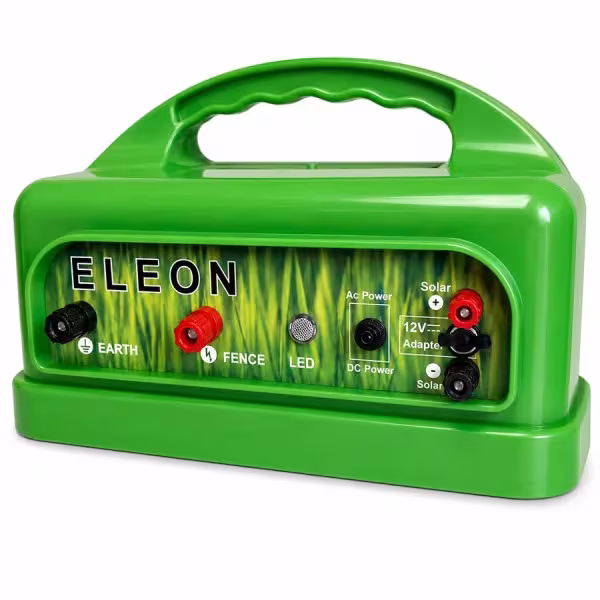

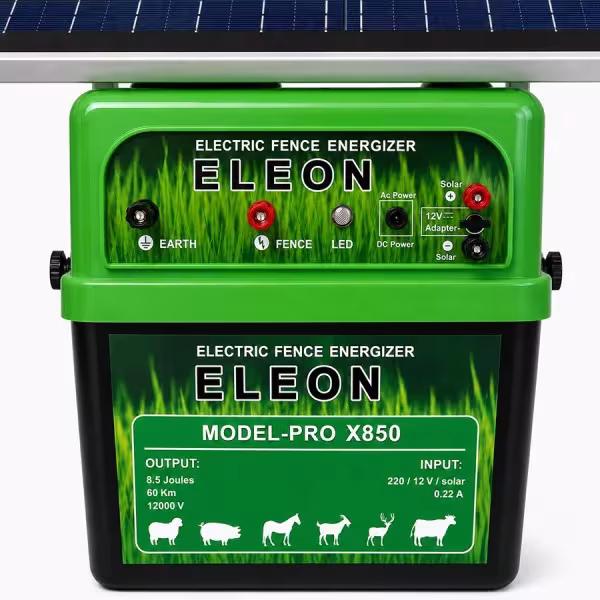

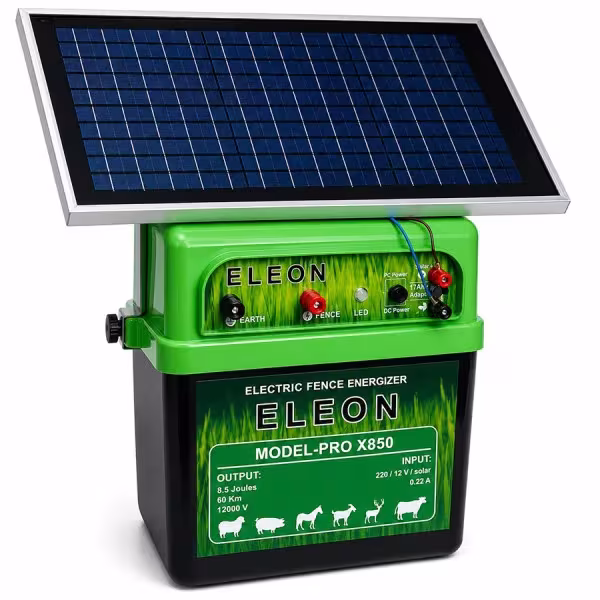

ELEON PRO X850 electric shepherd with battery and solar panel

ELEON PRO X850 electric shepherd: a professional solution for your farm

ELEON PRO X850 is a powerful autonomous pulse generator of Polish production, designed to create a reliable electric fence on pastures, farms and private territories. Thanks to the high pulse power of 8.5 J, this device provides stable control over livestock and effective protection of crops from wild animals. It is an ideal choice for farmers who value reliability, autonomy and durability of the equipment.

Why choose ELEON PRO X850?

This model is distinguished by its versatility and ability to work in the most difficult conditions. The electric shepherd effectively keeps cattle, horses, goats, sheep and pigs, and also creates a reliable barrier against wild boars, deer, foxes and wolves. Thanks to the well-thought-out design, the device is easy to install and does not require complex maintenance.

Key technical benefits and protections

• High pulse power: 8.5 J ensures that the animal will feel a safe but tangible signal, preventing attempts to leave the fence.
• Three power options: The device can operate from a 220 V network, a 12 V battery, or a solar panel, making it indispensable in remote areas without access to the power grid.
• Electronics protection with compound: The internal circuit board is filled with a special polymer material that protects the components from moisture, condensation, dust and corrosion, significantly extending the life of the device.
• Weatherproof: IP54-rated housing ensures reliable operation in rain, snow, and high humidity, allowing the system to be used year-round.
• Economy: Low current consumption (0.22 A) allows for the most efficient use of battery charge, ensuring long-term operation without recharging.

Operation and maintenance

To achieve maximum efficiency of the electric fence up to 60 km long (provided there is no vegetation), it is recommended to regularly check the condition of the wires and insulators. It is important to avoid contact of the fence with tall grass, as this can lead to current leakage and a decrease in pulse power. Using the solar panel included in the kit allows you to create a completely autonomous system that independently maintains the battery charge during daylight hours.

ELEON PRO X850 is an investment in the safety of your farm. Thanks to the combination of European build quality, powerful electronics and protective technologies, this electric shepherd will become a reliable assistant in the daily work of a farmer. The device comes with everything you need for a quick start, including a power adapter and wires for connecting to the battery. Choosing ELEON PRO X850, you get a guarantee of stable operation and peace of mind for the safety of your livestock and crops.

Characteristics

• Voltage, V: 220/12/solar panel
• Impact force, J: 6.5
• Country of manufacture: Poland
• Perimeter, km: 50
• Pulse power: 8.5 J;
• Output voltage: up to 12000 V;
• Electric fence perimeter: up to 60 km without vegetation;
• Power supply: 220 V / 12 V battery / solar panel;
• Consumption: 0.22 A;
• Degree of protection: IP54;
• LED indicator: yes;
• Warranty: 12 months;
• Manufacturer: Poland.
• Production: Poland;
• Voltage: up to 12000 V;
• Electric fence: up to 60 km without vegetation;
• Power supply: 220 V / 12 V / solar panel;
• Board protection: special compound;
• Housing: IP54 water resistance;
• Operation indicator: LED;
• Installation: simple and quick;
• Application: for domestic and wild animals;
• Service life: long-term operation even in difficult weather conditions.

Tips for effective use of an electric shepherd

To ensure maximum efficiency of the ELEON PRO X850 system in large areas, it is important to follow the installation rules. First of all, make sure that the wire or tape of the fence does not touch tree branches, tall grass or bushes. Contact with vegetation leads to current leakage, which significantly reduces the efficiency of the pulse and can lead to rapid battery discharge. It is recommended to regularly mow the area along the fence line.

When installing grounding, use metal rods at least 1-1.5 meters long, driven into moist soil. The quality of the grounding is a critical factor in the force of the shock that the animal will feel. If the soil in your area is dry or sandy, you may need to install several rods connected together to achieve optimal resistance.

Typical operating errors

The most common mistake is the use of poor-quality insulators or their absence on the posts, which causes voltage breakdown on the supports. It is also important to monitor the condition of the battery: do not allow it to be deeply discharged, especially in the cold season. Using the 20 W solar panel included in the kit greatly facilitates this process, but during periods of prolonged cloudiness it is worth monitoring the charge level using an external voltmeter.

Selection criteria for your farm

When choosing a pulse generator, pay attention not only to the length of the perimeter, but also to the type of animals you plan to keep. For cattle or horses, one or two levels of wire are sufficient, while for small animals or protection from wild animals, a denser mesh or additional fence lines at different heights may be required. The ELEON PRO X850, with its 8.5 J power, is a universal solution that allows you to scale the system depending on your needs, providing stable protection even in difficult operating conditions.

Remember that the safety of the animals and the efficiency of the system depend on the correct tension of the wires and regular visual inspection of all connection points. Following these simple recommendations will allow you to use the device for many years without the need for expensive maintenance.

Frequently asked questions about ELEON PRO X850

Can this device be used without a solar panel?

Yes, the device supports three power options: from a 220 V network, a 12 V battery, or a solar panel. You can choose the most convenient method depending on the conditions of your site.

What length of fence is this electric fence designed for?

The device ensures effective operation of an electric fence up to 60 km long, provided that the wires do not come into contact with vegetation.

How are electronics protected from moisture?

The device housing has an IP54 protection class, and the electronic board is additionally coated with a special protective compound that prevents moisture and corrosion.

What animals can be kept using this model?

ELEON PRO X850 is suitable for keeping cows, horses, goats, sheep, pigs, as well as for protecting the territory from wild animals such as boars, deer, foxes and wolves.
